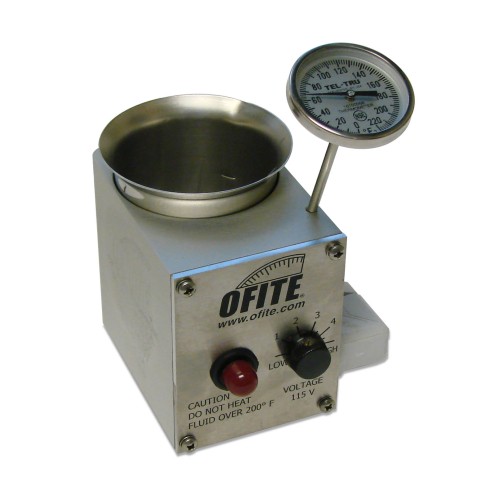

Thermocup with Removable Stainless Steel Cup

The Thermocup is designed for controlling the temperature of a mud sample while taking readings with a viscometer. The holes in the stage of OFITE Viscometers have been positioned to hold the heated cups at a 45° angle to the line of the instrument for better accommodation of thermometers and power cables. A removable stainless steel cup (included) makes cleaning safer and easier.

Features

• Anodized finish provides better heat transfer than paint
• Strain relief on the power cable protects wiring from damage
• Includes removable stainless steel cup (#130-76-10-10)

Components

• #130-26: Heating Element, 150 Watt, 115 Volt
• #130-26-1: Heating Element, 150 Watt, 230 Volt
• #130-31: Thermostat
• #130-38-014: Resistor
• #130-38-2: Lens for Lamp, Red
• #130-38-3: Lamp
• #130-76-10-10: Cup, Stainless Steel
• #154-00: Thermometer
• #171-32: Knob

Specifications

• Size: 3” × 4” × 4.5” (8 × 10 × 11 cm)
• Weight: 2.6 lb (1.2 kg)

Part Numbers

• #130-38-30: 115 Volt
• #130-38-35: 230 Volt
