OFI Testing Equipment, Inc. - Dynamic Linear Swell Meter with Compactor and Computer

Brand: OFI Testing Equipment, Inc.

Product Code: 150-80

Availability: Call for availability

Attachments:
- 150-80_instructions.pdf
- 150-80_brochure.pdf

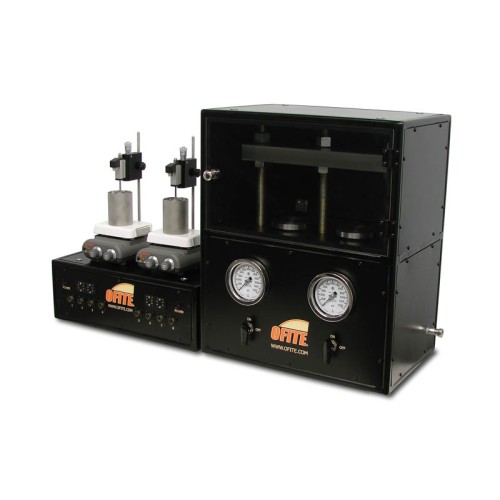

The Dynamic Linear Swell Meter is designed to simultaneously test up to four drilling fluids (expandable to eight) on a representative shale sample for extended periods of time at temperatures up to 180°F. The Linear Swell Meter is the only swell meter on the market capable of dynamically testing your fluids, so you obtain the most accurate data possible.

Features

Dynamic - Drilling fluid constantly circulates around the sample.
Efficient - Can measure up to four drilling fluids (expandable to eight) simultaneously.
Durable - Manufactured from 316 Stainless Steel.
Electronic Data - LVDT measures expansion of sample.
Complete - Includes dies and hydraulic press for making shale sample wafers.
Realistic - Fluid is in contact with the wafer from all sides.

Specifications

Size: 20.5” × 14.5” × 25” (52 × 37 × 64 cm)
Weight: 220 lb (100 kg)
Swell Meter and Compactor:
Crated Size: 27” × 21” × 47” (65 × 53 × 120 cm)
Crated Weight: 312 lb (142 kg)
Instrument Control:
Crated Size: 37” × 20” × 32” (94 × 51 × 81 cm)
Crated Weight: 235 lb (107 kg)

Software Features

Computer-Controlled - Logs, analyzes, and updates data real-time so you don’t have to!

Swell Meter Components

#130-75-71: Monitor
#130-75-74: Desktop Computer
#130-76-03: Thermocouple
#130-79-06: DAQ Cable
#150-80-009: Weight
#150-80-03: Screen, Flat, 1 1/16" Diameter
#150-80-031: Washer (Spacer), Teflon®
#150-80-032: Transfer Stand
#150-80-033: Wafer Tube
#150-80-034: Main Plate
#150-80-035: Cup
#150-80-036: Cap
#150-80-064: LVDT
#150-80-067; Micrometer
#150-80-101: Calibration Block, Multi Point
#150-83: Stirring Hot Plate, 115 Volt
#150-84; Stirring Hot Plate, 230 Volt
#152-37: AC Power Cord, 115 Volt
#152-38: AC Power Cord, 230 Volt
#153-67: Syringe, Disposable, 60 cc

Compactor Components

#122-224: Valve
#150-80-072: Pump
#150-80-075: Hose
#150-80-085: Spacer for Wafer Mold, 1/2"
#150-80-086: Spacer for Wafer Mold, 3/4"
#150-80-087: Body for Wafer Mold
#150-80-088: Plunger for Wafer Mold
#150-80-089: Drop Tube for Wafer Mold
#150-85: Relief Valve, 2,900 PSI (20 MPa)

Optional

#150-81-1: Swell Meter Expansion, Single Unit, 115 Volt Only
#150-81-2: Swell Meter Expansion, Single Unit, 230 Volt Only

Part Numbers

#150-80: 115 Volt
#150-80-1: 230 Volt

Drilling Fluids

Dynamic Linear Swell Meter with Compactor and Computer
