Product Code: 140-40
Availability: 1

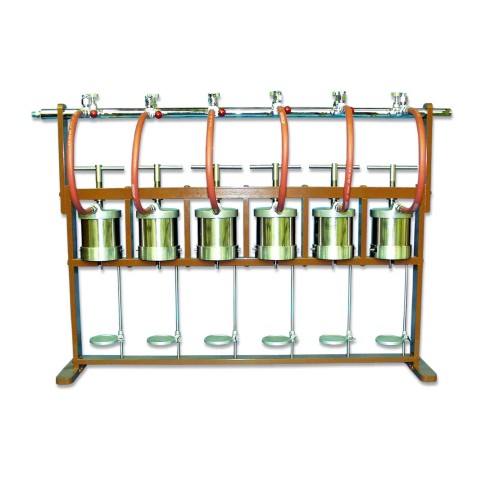

OFITE's Multi-Unit filter presses are perfect for lab environments when several tests must be run simultaneously. These units come complete with manifolds and all necessary air hoses and bleed-off valves. Suitable for laboratory use, OFITE Filter Presses have become the industry standard for low pressure/low temperature filtration testing.

Features

  • Stainless steel test cell
  • Suitable for lab use
  • Conforms to API specifications

Specifications

  • Maximum Pressure: 100 psi (690 kPa)
  • Pressure Source: Any non-hazardous gas
  • Number of Units: 4
  • Filtration Area: 7.1 ± 0.1 in2 (4,580 ± 60 mm2)
  • Filter Paper Size: 3.5” (9 cm)

Components

  • #140-55: Filter Paper
  • #141-00-C: Test Cell
  • #141-00: Cell Body
  • #141-01: Base Cap
  • #141-02: Top Cap
  • #141-04: Screen
  • #141-05: Gasket, Neoprene
  • #141-09: Threaded Insert with Set Screw
  • #141-10: T-Screw
  • #141-13: Air Hose, Low Pressure, 15"
  • #141-19: Air Hose Adapter
  • #141-22: Felt Filter
  • #143-06: Safety Bleeder Valve
  • #153-16: Graduated Cylinder
  • #170-34: Needle Valve

Optional

  • #141-15: Air Hose, Low Pressure, 6'
  • #140-40-SP: Spare Parts Kit for #140-40
  • #140-50-SP: Spare Parts Kit for #140-50
  • #153-16: Graduated Cylinder, 25 mL × .2 mL
  • #171-24-1: Nut for Pressure Fitting, Right-Hand Thread
  • #171-24-2: Nipple for Pressure Fitting
  • #170-36: Nitrogen Regulator with Gauges

Part Number

  • #140-40
