Cement Static Gel Strength Measurement Device, 20,000 PSI

Brand: OFI Testing Equipment, Inc.

Product Code: 120-53

Availability: Call for availability

Attachments:
- 120-53_instructions.pdf
- 120-53_brochure.pdf

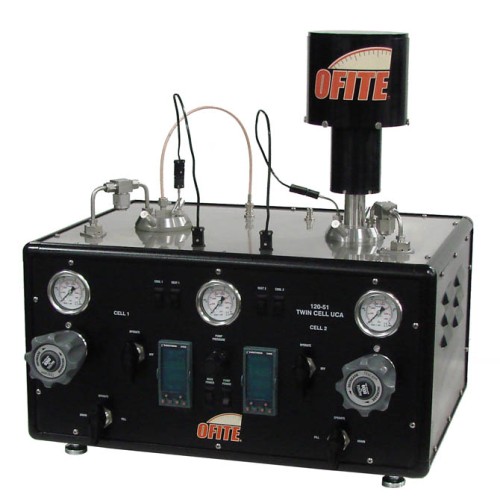

The Static Gel Strength Measurement (SGSM) device uses a vaned bob to condition a cement slurry inside a pressurized test cell and intermittently measure static gel strength at down-hole conditions. By directly measuring the forces required to initiate movement in the sample, the SGSM provides an accurate way of determining the static gel strength.

U.S. Patent No. 9,612,232

For more information, click here.

Features

Automatically conditions the slurry in-place (1 - 150 RPM)
Provides a direct mechanical measurement of static gel strength
Simultaneously measures static gel strength and compressive strength (dual-cell units only)
Intermittent or continuous measurement under high-temperature, high-pressure conditions
Data acquisition system with automatic temperature control included
Simple calibration and system check
Quick clean up and turn around

Specifications

Compatible with the Twin Cell UCA (#120-51)
Maximum Temperature: 400°F (204°C)
Max Operating Pressure: 5,000 PSI (138 MPa)
Size (Including Cell): 18.25” Tall × 5.9” Diameter (46 × 15 cm)
Weight: 47.2 lg (21.4 kg)

Requirements

Power: 100 - 240 Volt, 50 - 60 Hz, 2 Amp
Computer
- Windows XP or higher
- RS-232 Serial Port (or Serial to USB Adapter)
- Minimum Screen Resolution: 1280 × 680

Software Features

Data is available in real time on-screen and is also stored in an Excel® spreadsheet for easy graphical viewing and printing
A computer running OFITE software graphs the data from both cells
Windows®-based software

Components

#120-51-020: Thermocouple Assembly
#120-51-021: Fill Gauge
#120-51-1: Test Cell Body
#120-51-2: Cell Cap, Bottom
#120-53-01: Vane Assembly
#120-53-03: Cell Cap, Top
#120-53-06: Shaft for Mag Drive
#120-53-23: Diaphragm
#120-53-25: Cable, 25 Pin, Male to Male, 10 Feet
#120-53-31: O-ring for Mounting Adapter, Lower
#120-53-32: O-ring for Mounting Adapter, Upper
#120-53-33: Spring
#120-53-34: Load Cell
#120-53-38: Retainer, Snap Ring
#120-53-42: Bushing, Graphite
#120-53-60: Retaining Ring, Internal
#120-53-80: Electronics Box
#120-53-81: Wrench, Combination, 3/16"
#120-75-10: Weight Set
#122-073: Fuse, 2 Amp, 5 mm × 20 mm
#123-011: O-ring for Cell
#130-79-15: Serial Cable
#152-37: AC Power Cord, 115 Volt
#220-10A-EURO: Power Cord, 230V/10A European Plug
#220-15A-USA: Power Cord, 230V/15A USA Plug
